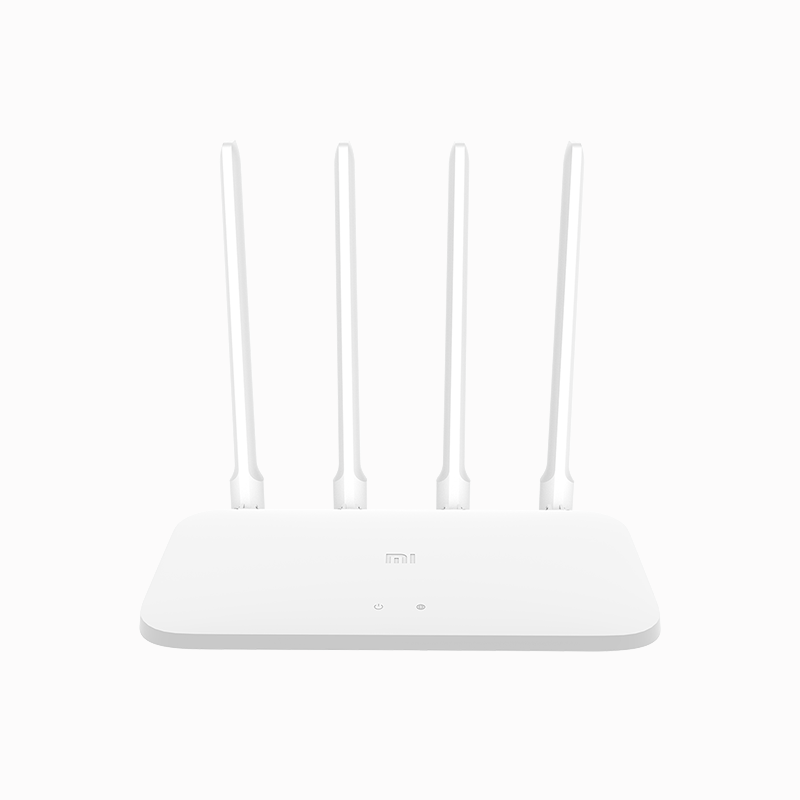

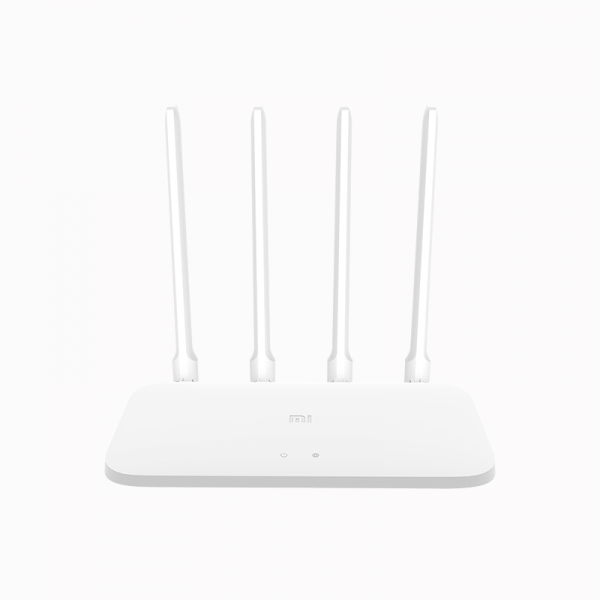

Xiaomi Mi WiFi Router 4C (White)

Xiaomi Mi WiFi Router 4C 2.4GHz Smart Mini WiFi Repeater 4 Antennas 802.11n 300Mbps Support iOS / Android – White

Product Description

4 High-performance Antennas For Stronger Signals

The high-quality antennas help to offer a great resistance for the signal. It all starts with a dual-band design, where 2.4 GHz has a maximum signal strength of 5dBi. This creates a stronger and more reliable Wi-Fi, while the four high-gain antennas offer an extremely wide range of signals.

64 MB RAM

Built-in 64MB RAM, 8 times larger than normal router, has strong performance. The increasing number of connected devices produces valuable RAM strains. Xiaomi Router 4C has a RAM of 64 MB that allows up to 64 devices connected simultaneously all full Wi-Fi speeds.

The Mainstream Of 2.4GHz Intelligent Routers

3 times faster than traditional wireless routers, support the latest IEEE 802.11n protocol, transmission rate up to 300Mbps.

APP Intelligent Management

An intelligent home controller center to operate all the smart home appliances.

Mini Size, Stylish Appearance

7 sets of protection, more secure router, to protect your exclusive WiFi zone and etc. Creative, direct and swift connection.

Info

Brand

Xiaomi

CPU

MT7628DA

ROM

16MB NorFlash

RAM

64MB DDR2

2.4G WiFi

2X2 (Support IEEE 802.11n, 300Mbps max)

Antenna

4 PCS

Heat dissipating system

Natural heat dissipation

Material

ABS

Color

White

Size

195*107*25.3mm

Weight

241g

Interfaces

Lan port: 2 (10/100 Auto MDI/MDIX)
WAN port: 1 (10/100 Auto MDI/MDIX)
LED indicators: 3 (Red/Blue/Yellow)
Button: 1 x Reset button
DC input: 1

WiFi band

2.4GHz

Wireless channels

2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13

Modulation mode

11b:DSSS:DBPSK(1Mbps),DQPSK(2Mbps),
CCK(5.5/11Mbps)
11g:OFDM:BPSK(6/9Mbps),
QPSK(12/18Mbps),16QAM(24/36Mbps),
64QAM(48/54Mbps)
11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM

Receiving sensitivity

11Mbps:≤-90dBm,54 Mbps:≤-72dBm,
HT20 MCS7:≤-69dBm,
HT40 MCS7:≤-66dBm

Operating system

MiWiFi ROM (Based on OpenWRT)

Language

The original system of this product is with Chinese and you can change the language through the official APP.

Wireless security

WPA-PSK/WPA2-PSK encryption, Wireless access control (black and white list), SSID hiding, Intelligent anti-rub network, wireless intrusion detection, password brute force crack detection, management background access control, access to SSID isolation

Management application

Support Web, Android, iOS

Protocol standards

IEEE 802.11b/g/n, IEEE 802.3/3u

Approval standards

GB9254-2008 YD/T993-1998 GB4943.1-2011

Working environment

Operating temperature: 0-40°C
Working humidity: 10%-90%RH
Storage temperature : -40-70°C
Storage humidity: 5%-90%RH
Power: 5W

Package Contents

1 x Xiaomi WiFi Router 4C, 1 x Charger (5V/1A), 1 x User Manual
